Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder

Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder

  • Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
  • Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
  • Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
  • Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
  • Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder
Ürün ayrıntıları:
Place of Origin: China
Marka adı: HWASHI
Sertifika: CE/CCC/ISO
Model Number: WL-SQ-100kx3
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
İletişim
Detaylı ürün tanımı
Ürün adı: Demir Çelik Sac / Levha Sertleştirici Spot Kaynak Makinesi, Kapı Metal Panel Otomatik Kaynakçı Uygulama: Yaygın Sac Kaynak için kullanılır
Boyutu: 1200x1180x1850mm Ağırlık: 300kg
Koşul: Yeni Garanti: 12 ay
Standart: CE / CCC / ISO Ömür: 8-10 yıl
Vurgulamak:

sheet metal spot welder

,

head welding machine

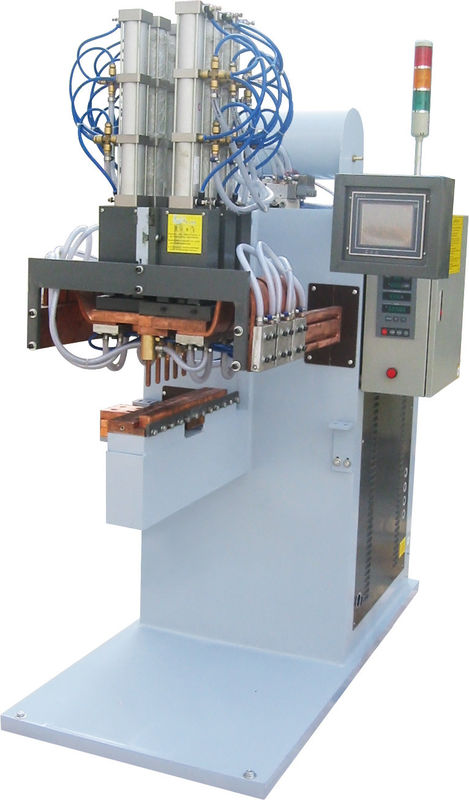

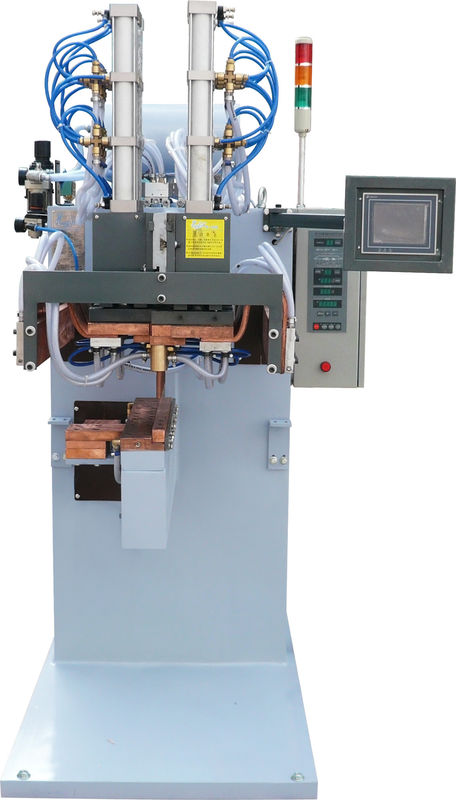

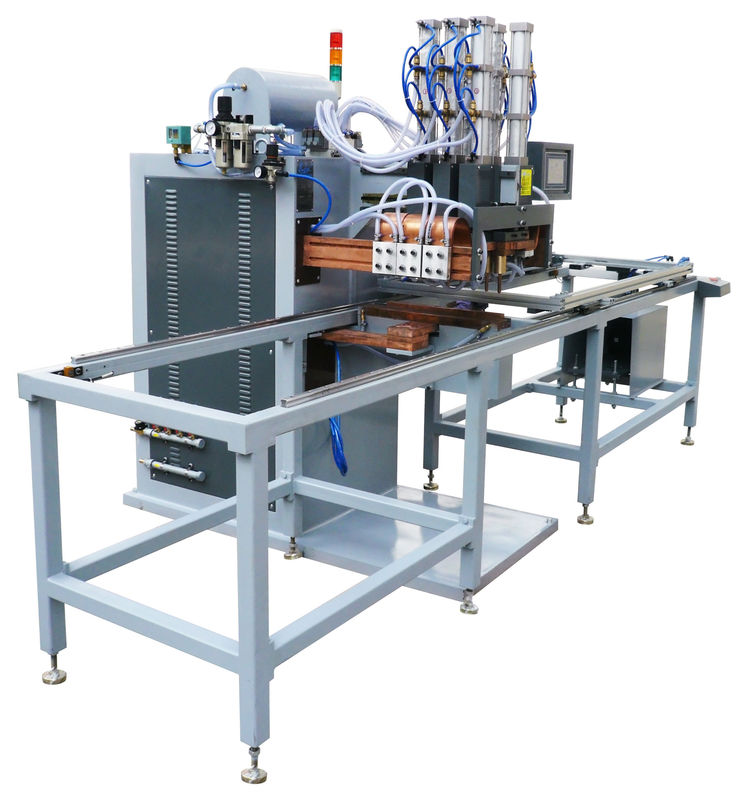

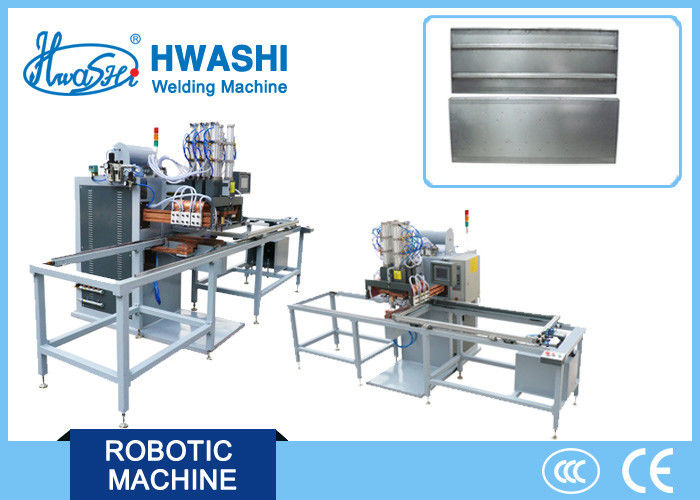

Iron Steel Sheet / Plate Stiffener Spot Welding Machine, Door Metal Panel Automatic Welder



DESCRIPTION





1. Brainpower touch-screen microcomputer controller, completely digital control, automatic detection and compensation, loose welding and false welding are well prevented.



2. Panasonic touch-screen hunan-computer interface, Panasonic programer is adopted as the control hub, in charging of reading and dealing with control signal to guarantee that the machine operation is in order and effective.



3.    Groups of welding electrodes can be moved from left to right, all kinds of products are suitable to be welded. Welding electrodes can work in flexible order. No metal sheet deformation.



4.    Pneumatic mechanism, the pressure of every electrode can be adjusted, stable force is achieved. The upper electrodes have an adjustable working distance forwards and afterwards, the lower electrode mould installation is simple and flexible to be adjusted from left to right.

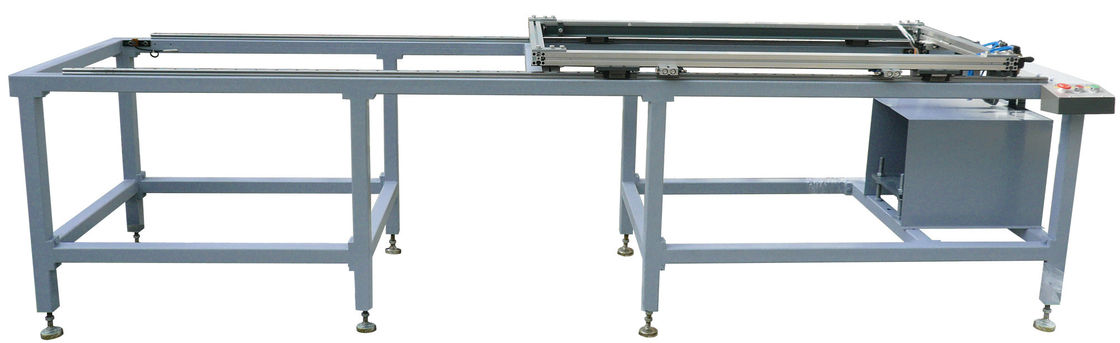

5.    Encoding servo motor feeding rack mechanism, equipped with high precise slide guide and automatic detection device. Has the advantages of quick reac





SPECIFICATION

S.N.

Items

Parameters

1

Input voltage

380V,2 phase

2

Input current

395A

3

Output voltage

AC11.6V

4

Max.short-circuit current

40000A

5

Welding Models

16 sets

6

Welding Position

5000 points

7

Different welding current

4 sets

8

Effective welding width

1000mm (customized)

9

Effective welding length

1200mm (customized)

10

Rack mobile speed

600mm/sec

11

Rack mobile power

Servo motor

12

Cross wire feeding system

1 set





APPLICATION

This machine is widely used to weld metal sheet in electronic appliances, automobile and other area..





COMPETITIVE ADVANTAGE

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here try our best to help you.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.







          Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 0

                              Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 1Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 2Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 3Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 4Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 5Iron Steel Sheet / Plate Stiffener Sheet Metal Welder , Door Metal Panel Automatic Welder 6
