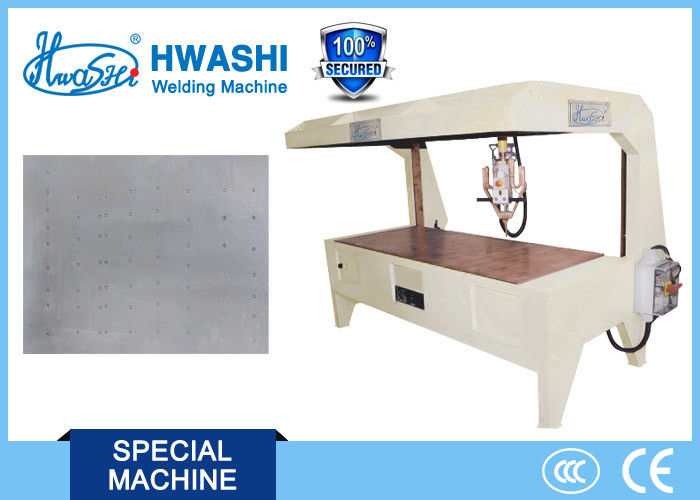

HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine

HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine

  • HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine
HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine
Ürün ayrıntıları:
Place of Origin: China
Marka adı: HWASHI
Sertifika: CE/CCC/ISO
Model Number: WL-SMF-120K
Ödeme & teslimat koşulları:
Minimum Order Quantity: 1 set
Fiyat: negotiation
Packaging Details: sea worthy wooden package
Delivery Time: 7-30 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 50 sets per month
İletişim
Detaylı ürün tanımı
Product Name: HWASHI Door Panel Table Sheet Metal Portable Welding Machine Application: Welding for Sheet Metal,Cabinet
Size: 2500x3200x2300mm Weight: 3000kg
Condition: New Warranty: 12 months
Standard: CE/CCC/ISO Service Life: 8-10 years
Vurgulamak:

sheet metal spot welder

,

head welding machine

HWASHI Door Panel Table Sheet Metal Portable Welding Machine

When you need this kind of machine, please kind send your product drawing or picture with below dimensions first clearly showing:

1. the material;
2. the thickness;
3. the max length and width of your product;
4. production capacity;

Then we can custom design and manufacture for you based on your requirements and your budget. Also we will give our suggestions base on our experience.
When we design, we put the below factors into consideration: welding spot position, welding quality consistence, and production efficiency.

APPLICATION

Suitable for industries like sheet metal,cabinet box, door sheet and so on.



DESCRIPTION

Resistance welding machine with copper table and balanced welding head, “zero weight”. Highest flexibility, available for welding galvanized materials, normal steel, stainless steel and aluminium.
Different working areas are available upon request.

Welding machines with copper table, welding head balanced and easy to handle. Great flexibility with solutions for steel, galvanized steel, aluminium. Conventional generators Medium Frequency (1000 Hz). Actuators da45 1800 daN.

The first prototype of the Roof was developed to meet the needs of a worldwide customer. The mission was to weld pieces heavy and thick in a fixed position. The solution has been, is and will be the series Roof, which in fact meets these expectations thanks to the easy handling of the welding head positioned above the work pieces, staking them exactly where required. Easy set-up, to use, maximum flexibility and versatility: targets achieved.

Possibility to choose between different models (for example, one head, two heads, X vertical gun, G vertical gun, different sizes, different powers, quality control, etc. …) which meet the specific needs of the end user.

Constant control of the current, active on every part of the copper bench, by means of a toroid belt, controlled by a Medium Frequency system (Inverter).

Technical Parameter:


S.N Items Wl-SF-MF100k
1 Input Voltage 380V, 3-Phase
2 Input Current 150A
3 Output Voltage DC11.6V
4 Max.Welding Current 28000A
5 Welding Specification 101 Kinds
6 Different Welding Current 101 Kinds
7 Effective Size Of Welding Platform 1000mmx2000mm
8 Max.Moving Range Of Crank-Arm 1200mm
9 Max.Moving Angle Of Crank 180°
10 Adjusting Range Of Platform Height 0-200mm
11 Gross Dimension 2200x2200x2200mm
12 Weight 1500kg


COMPETITIVE ADVANTAGE


1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help the customers to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal Hwashi pursue.





          HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 0




HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 1



HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 2

HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 3
                                    HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 4
 HWASHI Door Panel Table Sheet Metal Welder Portable Welding Machine 5
