Name: Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-FS-75k
Price: 20 USD
Availability: InStock

Ev > Ürünler > Dikiş Kaynak Makinası >

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

Menşe yeri:

Çin

Marka adı:

Hwashi

Sertifika:

Model numarası:

WL-FS-75k

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Model:

WL-FS-75k

Kaynak Çapı:

50-800mm

Giriş gücü:

100KVA

Kullanımı:

Dikiş Kaynak Makinesi

kaynak modu:

Örtüşme dikiş kaynağı

Renk:

özel

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

Fiyat

US$20,000

Ambalaj bilgileri

Ahşap kutu

Teslim süresi

30-60 gün

Ödeme koşulları

T/T,L/C

Yetenek temini

10 Takım/Ay

ilgili ürünler

video

Hwashi High-Precision Longitudinal Seam Welder Automated Fuel Tank Welding Solution with Superior Leak-Proof Performance

En İyi Fiyatı Alın

video

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

En İyi Fiyatı Alın

video

HWASHI Çeşitli Uygulamalar için Dikiş Kaynak Makinesi 75KVA 26500A Sabit ve Kaynak Güçlü ve tutarlı kaynak dikişleri

En İyi Fiyatı Alın

video

HWASHI Havalandırma Kanalı için Dikiş Kaynaklama Makinesi Manual Tin Can Side Welder Roll to Roll Banner Welder 75KVA 26500A

En İyi Fiyatı Alın

Bize Ulaşın

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Şimdi İletişime Geçin

Ürün Açıklaması

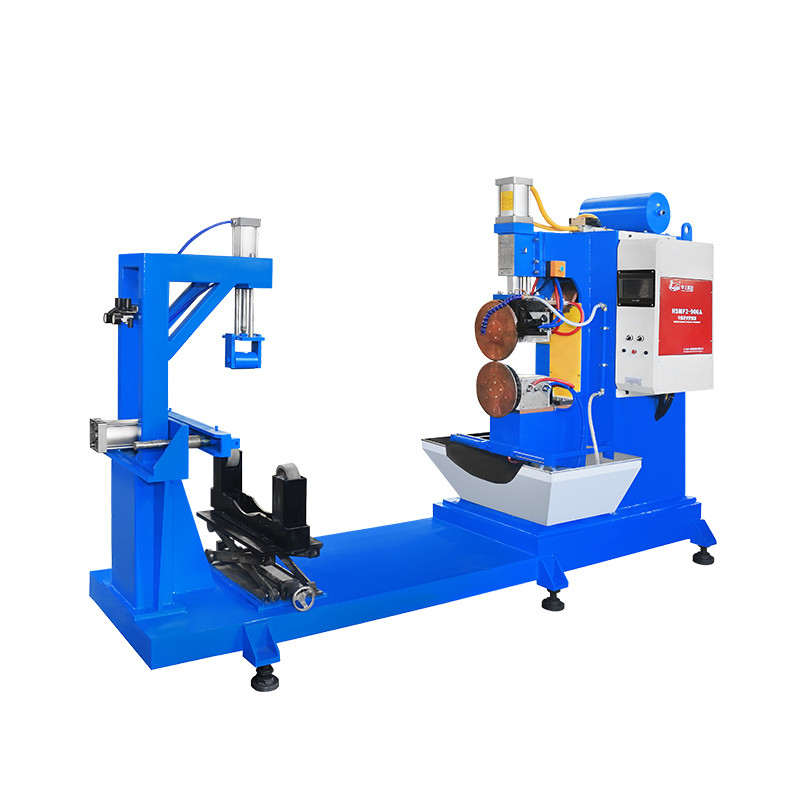

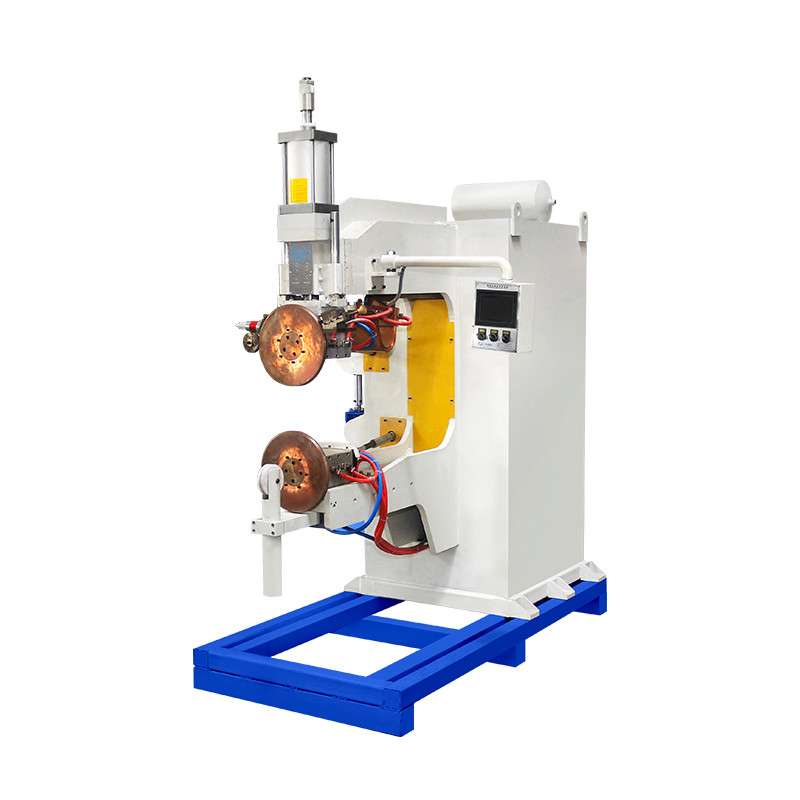

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine

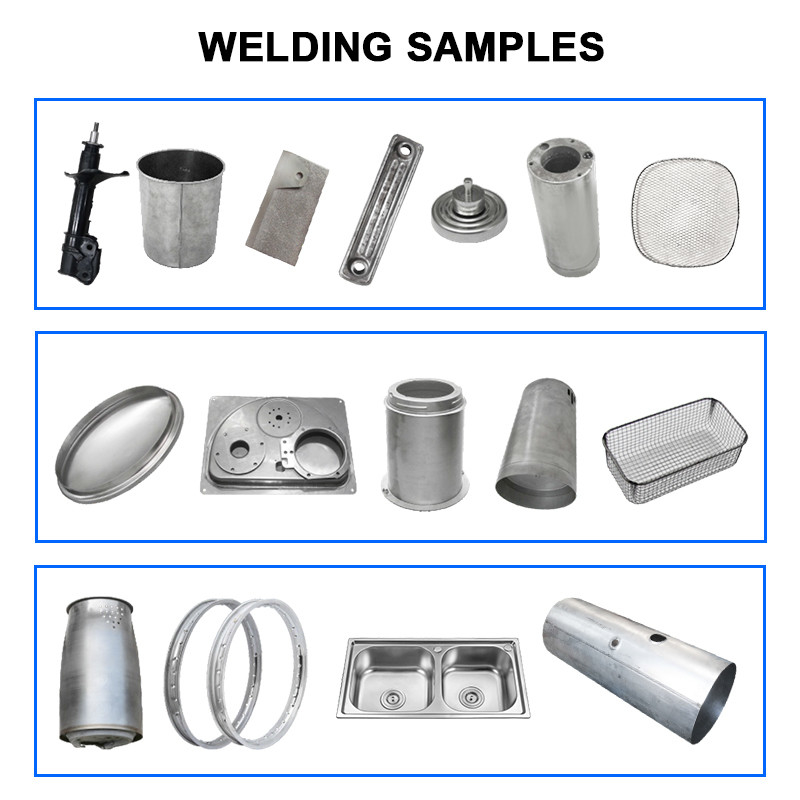

Longitudinal rolling seam welding machine for fuel tank is widely used in automobile, damper of motorcycle, detector of temperature controller, nickel strap of battery, oil heater, power capacitor, sieve iron basket, water pump manufacturing, tin making, coopery industry, etc.

Product Application
Suitable for welding the tank within the range of 500x300mm. Welding material thickness is 0.5-1.5mm. Total welding thickness is 1-3mm.

Welding Method of The Seam Welding Machine
Adopt standardized welding electrode. Special electrode molds and welding methods can also be customized according to the product specification.
Features of The Seam Welding Machine

1. seam welding machine use the roller electrode to replace the cylindrical electrode of spot welding.
2. It will generate weld nuggets which will overlap with each other so as to achieve welding effect.
3. AC pulse current or amplitude modulation current will be adopted, but three (single)-phase rectification, medium frequency and high frequency DC are also available.
4. According to different overlap of the melting cores, it could be divided into roll spot welding and air-tight seam welding.
5. There exist three stages in the forming process of welding spots: pressurization, heating fusing and cooling crystallization like spot welding.

6. The welding wheel can be operated in both horizontal and vertical directions.
7. The transformer and the welding wheel adopt the forced water cooling circulation system, which has a high load duration and achieves Continuous and stable welding.

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 1

Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 2

Specification
Hwashi High Quality Longitudinal Rolling Seam Welding Machine for Fuel Tank Automatic Seam Welding Machine 3

Model	Welding Wheel Manner	Input Voltage	Output Power	Output Current
WL-FSH-16K	Horizontal	220/ 380V	16KW	10000 A
WL-FSL-25K	Circular	220/ 380V	25 KW	12000 A
WL-FSH-25K	Horizontal	220/ 380V	25 KW	12000 A
WL-FSH-35K	Horizontal	380V	35 KW	16000 A
WL-FSZ-50K	Vertical	380V	50 KW	19500 A
WL-FSZ-75K	Vertical	380V	75 KW	24000 A
WL-FST-50K	Special Machine structure	380V	50 KW	19500 A
WL-FST-150K	Special Machine structure	380V	150 KW	40000 A
WL-FST-200K	Special Machine structure	380V	200 KW	50000 A
WL-FS-100K	Vertical	380V	100 KW	30000 A
