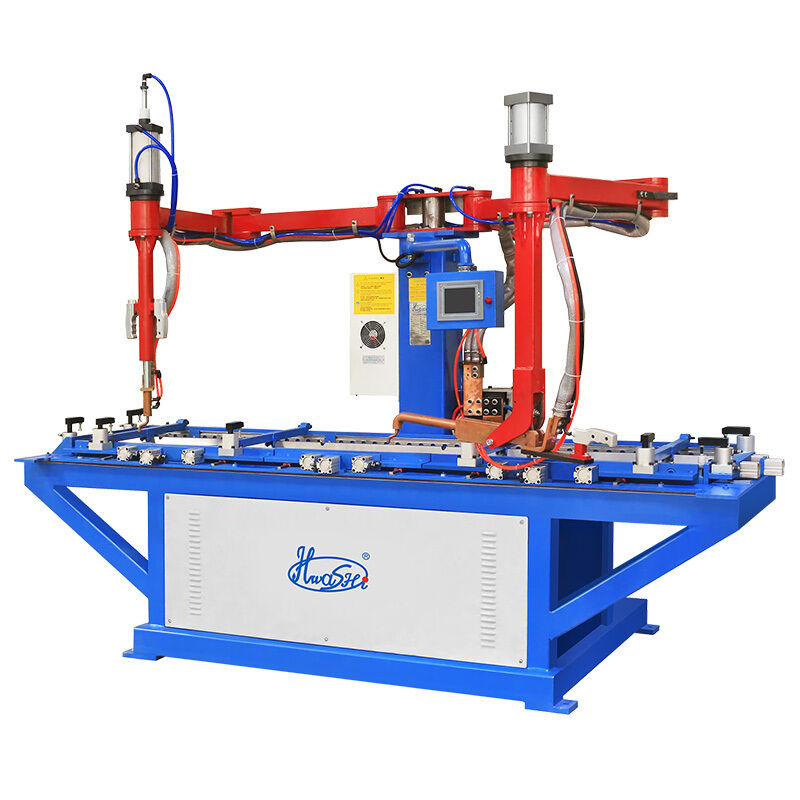

Name: HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SF-MF-100K/120K/160K
Price: 375,000.00 USD
Availability: InStock

Ev > Ürünler > Sac Kaynakçı >

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

34000A Max Welding Current Automatic Spot Welding Machine

1200mm Adjustable Width Sheet Metal Welder

Digital Control Gantry Type Welding Machine

Menşe yeri:

Çin

Marka adı:

HWASHI

Sertifika:

Model numarası:

WL-SF-MF-100K/120K/160K

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Ürün Adı:

Hwashi Sac Metal Özel Spot Kaynağı Çelik Kat Galvanizli Panel Metal Plaka İçin Otomatik Spot Kaynak

boyut(l*w*h):

2500x1200x1950mm

Ağırlık:

800kg

Kullanım:

Çelik panelin kaynağı

Garanti:

1 Yıl

Transformatör:

MF DC trafo

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 Takım

Fiyat

Anlaşılabilir

Ambalaj bilgileri

deniz değerli ahşap paket

Teslim süresi

Ödemenizi aldıktan sonra 20 - 30 iş günü

Ödeme koşulları

L/C,T/T

Yetenek temini

Ayda 50 Set

ilgili ürünler

video

HWASHI Raflarda sertleştiricilerin otomatik nokta kaynak makinesi, Otomatik direniş kaynak makinesi

En İyi Fiyatı Alın

video

Hwashi Son Otomatik Kapı Sac Portal Tipi İnvertör Kaynak Makinesi

En İyi Fiyatı Alın

video

Hwashi Güvenlik Paslanmaz Sac Kapı Plakası Çok noktalı Otomatik Mobil Tip Nokta Kaynak Makinesi, Sac Metal Kaynakçı

En İyi Fiyatı Alın

video

Hwashi Cnc Yedi 7axis Çift Kafa Sac Metal Kaynakçı Otomatik Spot Kaynak Makinesi Squatrack

En İyi Fiyatı Alın

Bize Ulaşın

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Şimdi İletişime Geçin

Ürün Açıklaması

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

Product Features

Intellectual touch-screen microcomputer controller with complete digital control
Automatic detection and compensation system prevents loose welding and false welding
Panasonic touch-screen interface with Panasonic programmer as control hub
Multiple welding electrodes that move from left to right for flexible operation
Suitable for welding various product types without metal sheet deformation
T-Type welding method for sealed work pieces
Maximum welding current up to 200KA
Precision locating mode with groove R bottom mold and top clamping
Mosaic structure electrodes with floating terminal device
Dual-side feeding capability for optimized welding efficiency

Custom Welding Heads

Processing and design according to the drawings of each metal plate product (customized)

Automatic Feeding and Welding System

This Automatic Spot Welding Machine uses conveyor belt feeder to transport workpieces to setting positions for automated welding operations.

Technical Specifications

Item	Specification	Description
Input voltage	380V, 2-phases	Customizable, but only for 2-phases
Input current	400A
Output voltage	12V
Max. Welding current	34000A
Effective welding width	1200mm (adjustable)
Effective welding length	3000mm (adjustable)
Feeding Rack Mobile speed	0.5m/sec	Servo motor transmitting
Upper welding air cylinder	100x100mm	Double force pressing cylinder
Lower cylinder	160x100mm
