Ürün Açıklaması

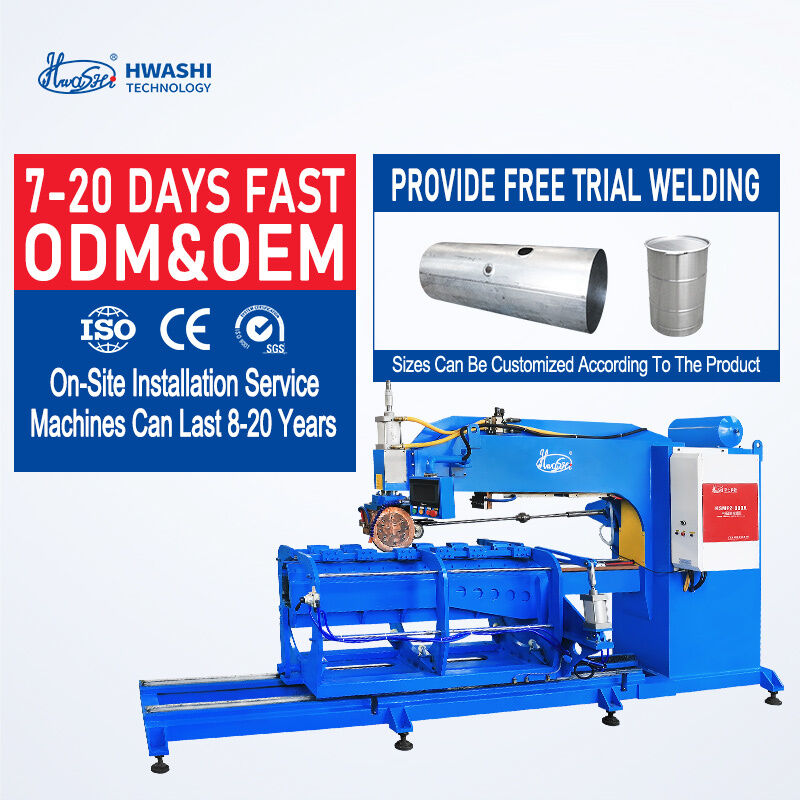

Hwashi Automatic Rolling Seam Welding Machine with PLC Control System for Customizable Stainless Steel Sinks and Tanks 75KVA Input Power

High-precision, energy-efficient industrial equipment specifically engineered for mass production of stainless steel water sinks, tanks, and similar metal containers.

Technical Specifications

Item	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Model	WL-FS-AC75K	WL-FS-MF75K	WL-FS-MF100K
Input Voltage	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz	Three-phase 380V±10% 50Hz
Input Power	75KVA	75KVA	100KVA
Rated Input Current	115A	115A	150A
Rated Duty Cycle Rate	50%	50%	50%
Max Secondary Floating Voltage	DC9.75V	DC9.75V	DC11.6V
Secondary Max Short Circuit Current	26500A	26500A	28000A
Welding Transformer Insulation Grade	Grade F	Grade F	Grade F
Program Segment Time Adjustment Range	0～9999SEC	0～9999SEC	0～9999SEC
Controller Heat Adjustment Range	15%～99%	15%～99%	15%～99%
Upper Welding Wheel Diameter	280mm	280mm	280mm
Lower Welding Wheel Diameter	40mm	40mm	40mm
Welding Wheel Width	3mm	3mm	3mm
Welding Wheel Rotating Speed	800-4000mm/min (adjustable)	800-4000mm/min (adjustable)	800-4000mm/min (adjustable)
Upper Welding Wheel Throat Depth Distance	400mm	400mm	400mm
Lower Welding Wheel Throat Depth Distance	400mm	400mm	400mm
Upper and Lower Welding Wheel Distance	50mm	50mm	50mm
Air Pressure	0.6MPa	0.6MPa	0.6MPa
Gas Consumption	10m³/h	10m³/h	10m³/h
Water Pressure	0.2Mpa	0.2Mpa	0.2Mpa
Water Temperature	10-20℃	10-20℃	10-20℃
Cooling Water Consumption	800L/H	800L/H	800L/H

Technology Overview

This machine utilizes circular welding wheel seam welding technology, where minimized distance between welding spots creates overlapping nuggets. When overlap exceeds 1/3 of nugget diameter, it achieves airtight welding—critical for leak-proof performance in water sinks and tanks.

Available in three models with adjustable specifications, the machine features medium-frequency inverter power sources that significantly reduce energy consumption while delivering stable, powerful welding performance.

Key Features

Fully automatic operation requiring only one operator
Medium frequency inverter power source for energy efficiency
Mitsubishi professional automatic control system
Servo motor-driven X-axis (mold positioning) and Y-axis (welding electrode)
Stores up to 15 sets of welding models for quick production switching
Intelligent microcomputer controller with digital setting and LED display
Automatic welding current compensation for voltage fluctuations
High-quality components from international manufacturers
Advanced mercury conductive technology for transmission tile axis
Japanese alloy copper welding roll wheels for high rigidity and conductivity
Japanese high-purity silicon steel sheet transformers for low power consumption
Modular mosaic connection design for easy assembly and disassembly
Multiple power source options: AC pulse, secondary rectifying, and three-phase medium frequency

Competitive Advantages

Industry Leadership: HWASHI is China's leading resistance welding brand for 20 years with factory-direct competitive pricing
Customized Solutions: Flexible design and development services tailored to your specific requirements
Quality Assurance: Genuine products with 12-month warranty, ISO9001:2000 and China Compulsory Certification compliance
Reliability: 8-10 year service life with 100% pre-delivery testing
Technical Support: 24-hour technical assistance and professional consulting services
Efficient Delivery: Just-in-time delivery service
