Name: Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles
Brand: GUANGDONG HWASHI TECHNOLOGY INC.
SKU: WL-SQ-MF160Kx2
Price: 25,000.00 USD
Availability: InStock

Ev > Ürünler > Kondansatör Deşarj Kaynak Makinesi >

Medium Frequency Automatic Spot Welder with Dual Welding Heads and MFDC Inverter Technology for Barrel Hoop Buckles

Medium frequency spot welder with dual heads

Automatic spot welder for barrel hoops

MFDC inverter spot welding machine

Menşe yeri:

Çin

Marka adı:

HWASHI

Sertifika:

Model numarası:

WL-SQ-MF160Kx2

Bize Ulaşın

Bir teklif isteği

Ürün Detayları

Ürün Adı:

Buzdolabı Kablo Tüp Kondensör Üretim hattı Makinesi kaynak Eğme Makinesi Metal Kablo İşleme

Boyut(l*g*y):

5000x2400x2200mm

Ağırlık:

2500kg

Etkili kaynak genişliği:

600-1000mm (özelleştirilmiş)

Garanti:

1 Yıl

Transformatör:

MF DC trafo

Ödeme ve Gönderim Koşulları

Min sipariş miktarı

1 Takım

Fiyat

Anlaşılabilir

Ambalaj bilgileri

FCL için denize layık ahşap PVC Film paketi

Teslim süresi

Ödemenizi aldıktan sonra 30 - 60 iş günü

Ödeme koşulları

L/C,T/T

Yetenek temini

Aylık 50 Takım

ilgili ürünler

video

MFDC Double-Head Spot Welding Machine with Dual-Point Welding and MFDC Transformer for Barrel Hoop Lock Clips (600-1000mm Welding Width)

En İyi Fiyatı Alın

video

Hwashi Wl-Sp-1ook AC Nokta Kaynak Makinesi Yüksek Performanslı Elektrikli Nokta Kaynak Makineleri

En İyi Fiyatı Alın

video

15KVA Kondensatör boşaltma kaynak makinesi

En İyi Fiyatı Alın

video

Hwashi 15KVA Kondensatör Serbestleme Kaynak Makinesi

En İyi Fiyatı Alın

Bize Ulaşın

+86-13380655800

export_trade@hwashi.com

86-752-3528326

Şimdi İletişime Geçin

Ürün Açıklaması

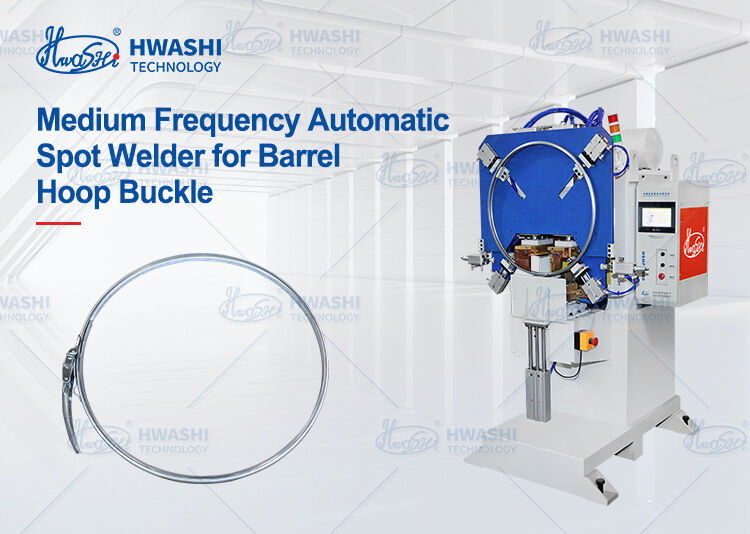

Medium Frequency Automatic Spot Welder for Barrel Hoop Buckle

On every steel drum, the hoop buckle is the most critical component—it's the mechanical latch that tightens and locks the barrel hoop in place, bearing the full clamping force during sealing, opening, and transportation. A failed buckle weld results in loose hoops, broken seals, and leaked contents. For industries handling chemicals, petroleum, or food products, this represents not just a quality issue but a safety and compliance failure.

Hwashi's Medium Frequency Automatic Spot Welder for Barrel Hoop Buckles is engineered to prevent such failures. This machine automates the entire buckle welding process: operators load the hoop and buckle, and the machine positions, clamps, and welds both attachment points with precise MFDC energy before releasing the finished part. Every weld is identical—consistent nugget size, penetration depth, and pull strength—ensuring reliability shift after shift, drum after drum.

What distinguishes this machine is the integration of medium-frequency inverter DC technology with a welding process specifically optimized for barrel hoop buckles. The MFDC power supply handles galvanized steel hoops without spatter or coating damage. The fixture system accommodates the curved geometry of barrel hoops, and dual welding heads deliver symmetrical, simultaneous welds unmatched by single-head machines.

Key Differentiating Features

Automatic Welding Cycle

Eliminates operator skill dependency with fully automated clamping, electrode approach, welding current profile, hold time, and retraction. Ensures consistent weld quality regardless of operator experience.

MFDC Inverter Technology

Operates at 1000Hz for rapid, concentrated energy pulses that form solid weld nuggets before zinc coating vaporizes. Results in clean welds with minimal spatter, intact zinc coating, 30%+ energy savings, and power factor ≥0.90.

Dual Welding Heads

Simultaneous, synchronized welding of both attachment points ensures symmetrical weld quality under identical conditions. Eliminates thermal and mechanical variations found in single-head processes.

Curved-Surface Fixturing

Engineered specifically for barrel hoop curvature with shaped contact blocks and custom electrodes. Ensures full, even contact at welding positions without shimming or compromise.

Operational Flexibility

Accommodates multiple drum sizes through quick-change fixture components and programmable welding parameters. Store and recall up to 101 welding programs—switch between 55-gallon drum hoops and 20-liter pail hoops in minutes without recalibration or test welds.
