Metal Lock Key Butt Welding Machinery , AC Pulse Resistance Spot Welder

Metal Lock Key Butt Welding Machinery , AC Pulse Resistance Spot Welder

butt welding equipment

butt-welding machine

Place of Origin:

China

Marka adı:

HWASHI

Sertifika:

CE/CCC/ISO

Model Number:

WL-SB-50K

Bize Ulaşın

Bir teklif isteği
Ürün Detayları
Product Name:
Metal Lock Key Butt Welding Machinery , AC pulse Resistance Spot Welder
Condition:
New
Standard:
CE/CCC/ISO
Application:
Welding Mental Lock Key
Weight:
300kg
Warranty:
12 Months
Service Life:
8-10 Years
Ödeme ve Gönderim Koşulları
Minimum Order Quantity
1 set
Fiyat
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
50 sets per month
Ürün Açıklaması

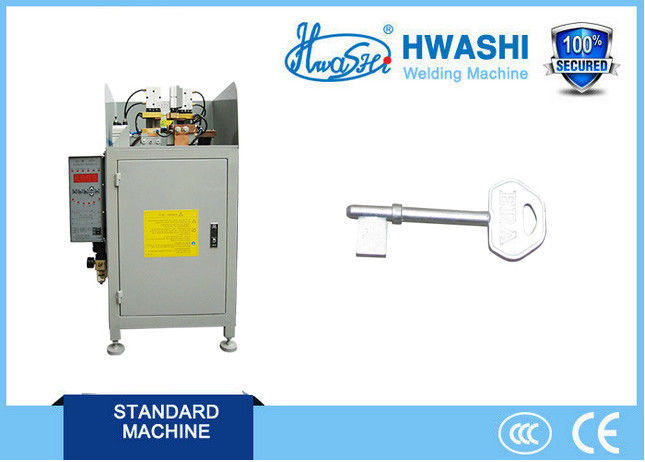

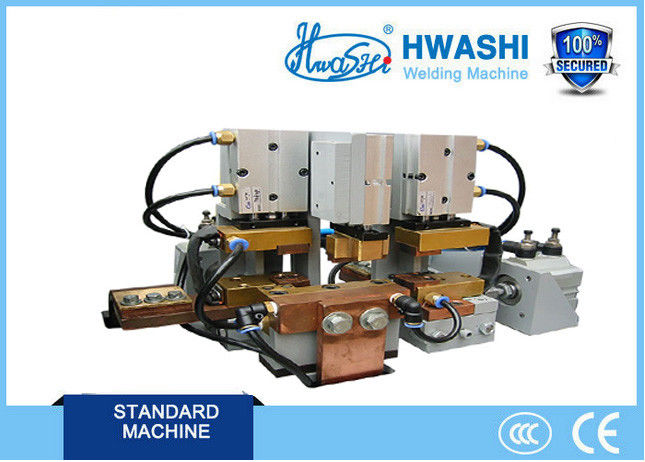

Metal Lock Key Butt Welding Machinery , AC pulse Resistance Spot Welder



DESCRIPTION



This machine could choose the function of three times discharging. As for medium carbon steel, this machine possesses the function of preheat and welding anneal and is specially equipped with parallel straight slideway to ensure the parallel pressure of forging power of the welding product so as to achieve smoothness and firmness on the connecting position.



Except for the general functions of AC pulse spot welder, this type of machine also possesses the following features: be able to place the end face of the work pieces on the opposite place. To utilize the contact resistance of the two ends on the connecting position to generate high temperature and high heat to achieve welding effect under the effect of pressure.



Feature:



1)Adopt Microcomputer controller: It has the functions of parameters analysis, adjustment and control during the welding process of clamping, welding current ,welding time,maintain etc, equipment operation is simple and easy to master.



2)Adopt pneumatic cylinder, veritcal pressure: more clamping force ensure that workpiece is not slippery when it is welded, welding performance is more stable.



3)Good forming: simple process of butt resistance welding, small welding shrinkage and little burrs, it is expedient to simplify back process



APPLICATION



Butt welding of wire rod of different size or shape. Also suitable for butt welding of unfolded panel material whose width is within 300mm.



SPECIFICATION



Model Input Voltage Input Power Secondary Current Stroke
WL-B-16K 380V 16 KW 10000A 25 mm
WL-(S)B-25K 380V 25 KW 12000A 25 mm
WL-B-35K 380V 35 KW 16000A 50 mm
WL-(S)B-50K 380V 50 KW 19500A 50 mm
WL-B-75K 380V 75 KW 24000A 50 mm





COMPETITIVE ADVANTAGE



1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.



2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.



3. Genuine Product with Excellent Quality: 12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.



4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.



5. Quick Delivery: Our company provides just-in-time delivery.



6. Prompt Response to Customers: Your satisfaction is the goal we pursue.
