Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed

Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed

kapasitif deşarj kaynakçı

kondansatör deşarj kaynakçı

ISO yatay kondansatör deşarj kaynakçı

Place of Origin:

China

Marka adı:

HWASHI

Sertifika:

CE/CCC/ISO

Model Number:

WL-SQ-DC35K

Bize Ulaşın

Bir teklif isteği
Ürün Detayları
Ürün adı:
Kondansatör Deşarj Kaynak Makinesi Paslanmaz Çelik Elektrik Kutusu Nokta Kaynakçısı
Başvuru:
Paslanmaz çelik elektrik kutusu için kaynak
Gerilim:
12kva
Ağırlık:
700kg
Şart:
Yeni
Garanti:
12 ay
Standart:
CE/CCC/ISO
Hizmet Ömrü:
8-10 Yıl
kaynak kalınlığı:
2-8mm
Ödeme ve Gönderim Koşulları
Minimum Order Quantity
1 set
Fiyat
negotiation
Packaging Details
sea worthy wooden package
Delivery Time
7-30 working days after received your payment
Payment Terms
L/C, T/T
Supply Ability
50 sets per month
Ürün Açıklaması

Capacitor Discharge Welding Machine Stainless Steel Electric Box Spot Welder



DESCRIPTION



This machine is customized for butt welding of stainless steel elecric box, which is equipped with three sets of  capacitor, it allows three welding head working at the same time. There have serval welding position, and it can assure finished welding all the welding position at one time.



Horizontal capacitor discharge welding machine adpots Japan Panasonic capacity to store energy and relaese instantaneous current. It is especially good for welding stainless steel products, like pan ,pot,strainer and other cookware.



1. Be able to weld 8mm of nonferrous metals like stainless steel, aluminum, titanium, silver, etc. Overcome the difficulties in welding dissimilar metals like bronze, aluminum, etc.



2. Welding surface: Firm welding; No black coating on the welding spots so no polishing process is needed; especially suitable for welding those exporting products which have high requirement on good looking.



3. Electricity and Energy Saving: This machine gets low surge power from the power grid and the power factor is high. Compared with the common AC machine with the same capability, it uses only 1/7 to 1/10 of the power. With a low cost.





SPECIFICATION



 Model

 WL-SQ-DC35K

 Voltage

 380 V

 Power

12KVA

Energy Storage

6000J

Capacitance

53500uF

 Pressurization

1500kg

 Electrode Stroke

100 mm

 Closure

130-230mm

 Platform Distance

260mm

 Electrode Distance

490-540mm

 Cooling Water

6 Lit/min





APPLICATION



Suit for industries like kitchen utensils, automobile manufacturing, glasses, hardware, household appliances, low-voltage apparatus, elevator, compressor, etc.

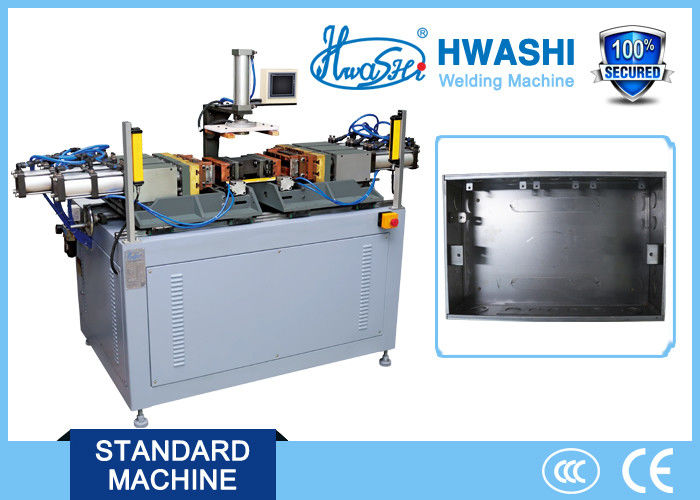

Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 0





MATERIAL CONFIGURATION



1. Adopt the energy storage type quick charge-discharge capacitor from Japan Nippon Chemi-Con (NCC) which is originated from MARGON or HITACHI; Fast discharge rate. Stable performance.



2. Adopt Motorola integrated circuits from United States. Quick response. Stable performance.



3.Adopt SEMIKON from West Germany, IXYS or IR Silicon controlled from United States. High precision and durable. Be able to achieve high stable control on the magnitude of current.





4. Adopt pneumatic parts from Japan or Taiwan with reliable performance.



5. All the devices are from imported famous brands with ideal service life and performance.





WHY CHOOSE US?

1. HWASHI is the leading brand in resistance welding industry in China for 20 years; Factory direct sale, competitive price.

2. Customized Service: We can help to design and develop the welding machine according to your requirement. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality:  12 months warranty. Our machines are strictly complied with ISO9001:2000 and China Compulsory Certification. Most of our machines enjoy 8-10 years service life. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Quick Delivery: Our company provides just-in-time delivery.

6. Prompt Response to Customers: Your satisfaction is the goal we pursue.



Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 1



            Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 2

  Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 3

Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 4

Stainless Steel Electric Box Capacitor Discharge Welding Machine / Spot Welder High speed 5
